Foreign materials detection module

ONOFF SYSTEM Product

Home > Product > Smart sensor> Foreign materials detection module

Offers scientific measurement instrument-level, six-channel,
real-time particle monitoring Ethernet, RS486; I/O Interface environment

Allows measurement of
particle sizes in six-channel
(0.3, 0.5, 1.0, 2.5, 5.0, and 10 μm)

Module installs efficiently in
required areas because of
its small size

Supports Ethernet,
RS485, and an I/O
Interface environment

Product Strengths

Provides equivalent measurement capabilities to foreign object debris detectors (its Pearson correlation coefficient of 0.963 indicating a very strong positive correlation)
2.2 inch frontal LCD and buttons allow real-time information and alert history access as well as configuration value adjustment
I/O and communication insulation prevents on-site noise-based malfunctions
Provides real-time information on six channels per particle size via frontal LCD

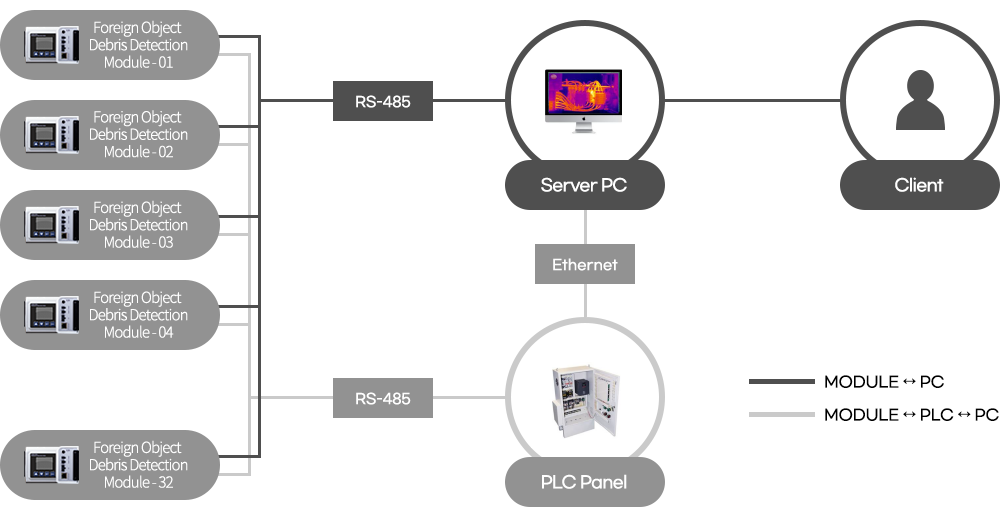

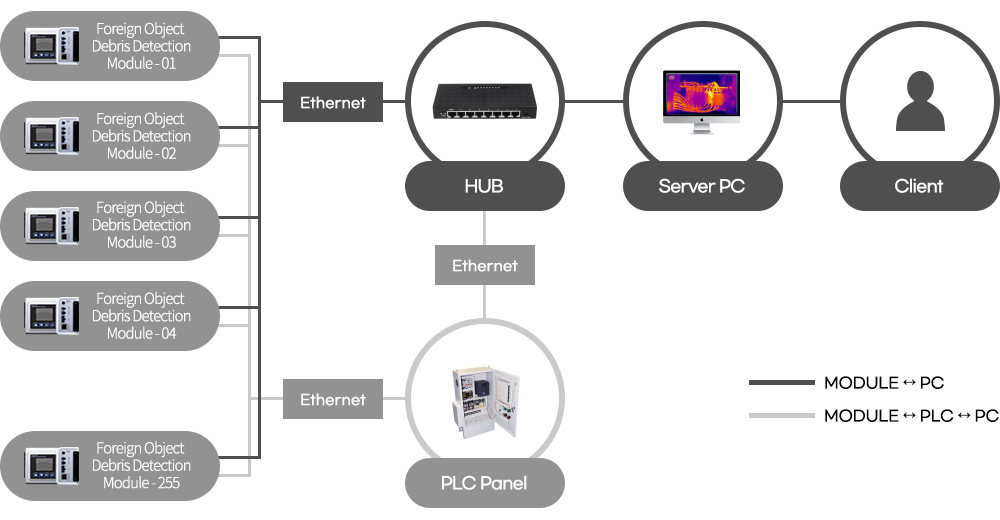

Supports Ethernet, RS485, and an I/O communications interface
Allows real-time collection of temperature and humidity information by PLC and allows changes to temperature warning, alarm levels, and communication speed configured values within the module itself
Dedicated software allows for simultaneous monitoring of multiple foreign object debris detection modules

Expected Effects

Small size allows for efficient installation of the foreign object debris detection module in required areas
Offers equal performance at less than half the cost of scientific measurement instruments, allowing for cost-effective installation of multiple modules

Product Specifications
Measurement Principles	Laser scattering (laser light scattering method)
Particle Size Classification (6 Levels)	6 Channels (0.3, 0.5, 1.0, 2.5, 5.0, 10μm)
Detection Capacity	0 ~ 10,000,000 pcs/L (1pcs/L=28.3pcs/cf)
Measurement Precision	1 pcs/L
Operating Environment	-20℃ ~ 60℃, 0 ~ 95%RH (Non-condensing)
Storage Environment	-30℃ ~ 70℃, 0 ~ 95%RH (Non-condensing)
Particle Detection Precision	70% @0.3um, 99% @≥0.5um ☞ Condition: 25 ±2°C, 50 ±10%RH
Response Time	Instant measurement : 1 s After power input: ≤ 8 s (allows for effective data use)
External Interface	RS485, Ethernet I/O 4 Point (each) Input : 1.5mA @DC 24V, Output : 50mA Max.
Design life expectancy	≥ 43,800Hrs (Min. 5 year _ 24 hour/day operation)
Power	DC 24~48V, 0.2A @DC 24V
Display	2.2” LCD
Size	L 125 mm × H 125 × W 62 mm
Weight	340g
